CAD model
Entirely modeled in Autodesk Alias with high precision tolerance and clean surface topology. Most of the surface patches are single span and 90% are in Curvature continuity in order to achieve high-quality reflections as well as high-quality light bounces.
—

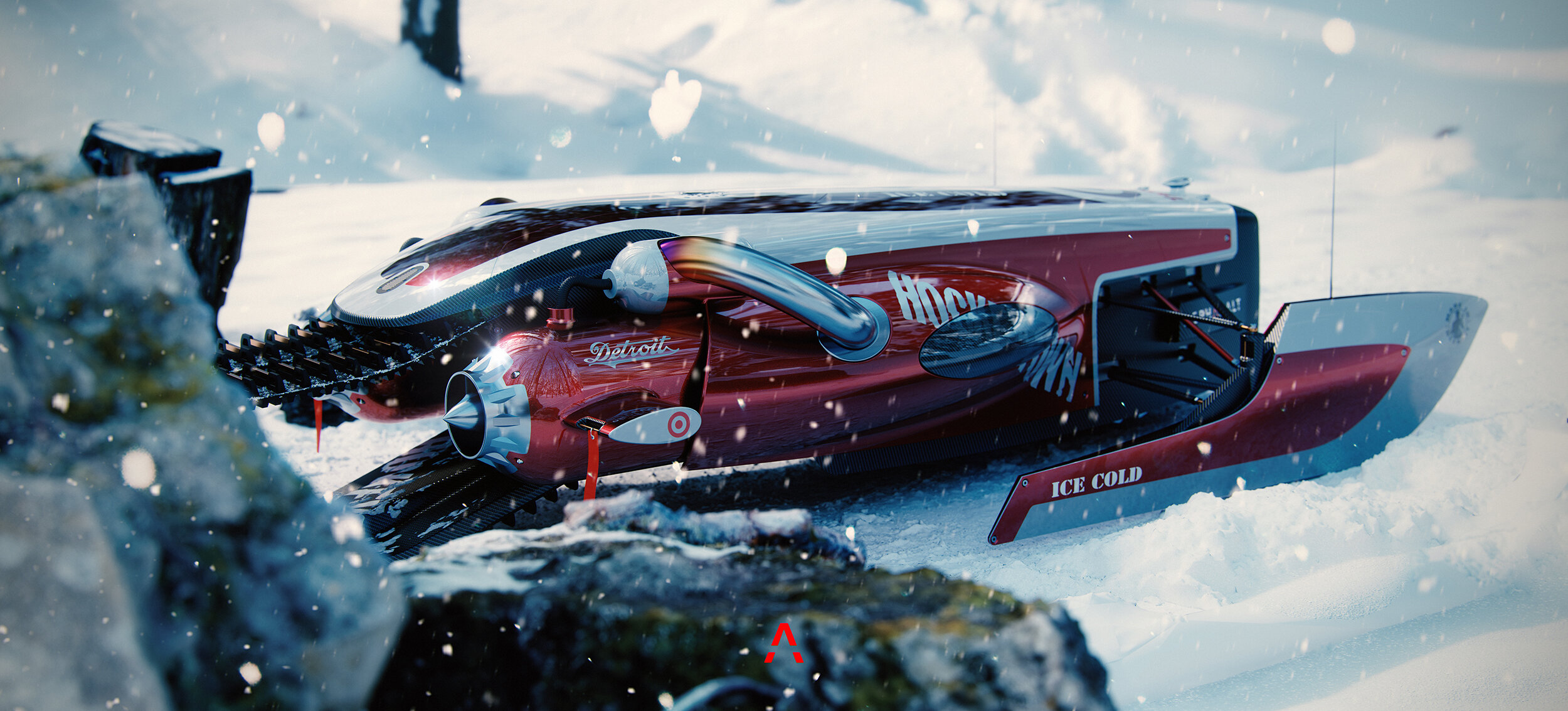

A unique Winter machine
No need to explain. This “Zamboni” pushes the limits of extreme winter Motorsport. The pilot-less autonomous machine, entirely self-controlled, seats on 2 ultra-lightweight fronts skis and holds a pair of rear thrusters combined with heavy duty composite caterpillars. The Zamboni also has 2 fog lights located in each side canopy.
—
Top view
Full bird view of the Zamboni
—
Front view
The headlight is located in the nose, in reference to the New York Central J3a Hudson Bullet Streamline Steam train. Each body panel is mounted around a carbon fiber chassis and low profile suspensions.
—
Full throttle
The higher the speed, the better it works! The thin skis are designed to reduce both air drag as well as surface friction to improve efficiency & performance.
—
Full throttle
The higher the speed, the better it works! The thin skis are designed to reduce both air drag as well as surface friction to improve efficiency & performance.
—
Ski & suspension
Each ski is mounted on the frame with an ultra-lightweight suspension system in carbon fiber and is encapsulated in painted boby panels.
—
Frame & suspension
Full carbon fiber frame / suspension.
—
Side view
Full carbon fiber frame / suspension.
—
Nose
Close-up view of the nose showing the quick release latches.
